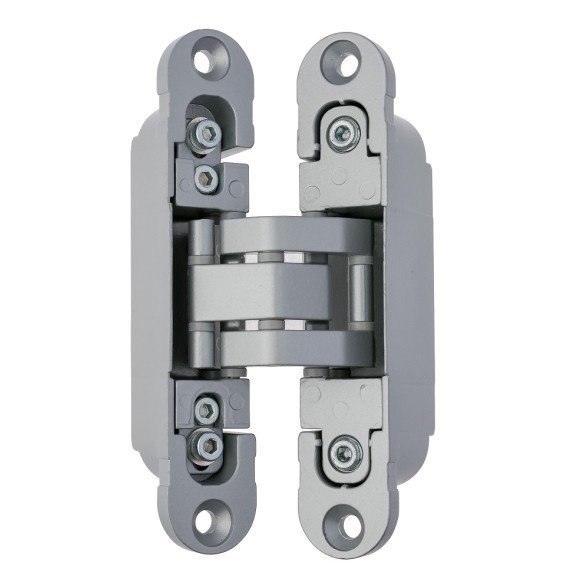

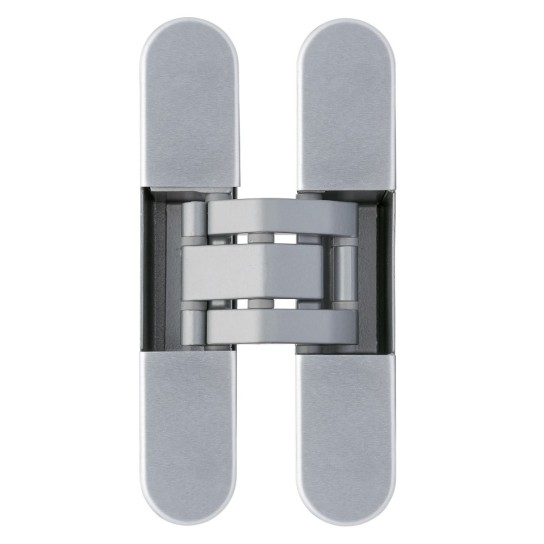

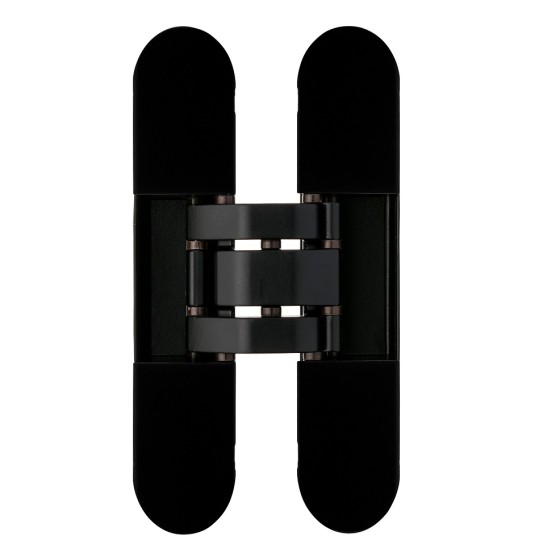

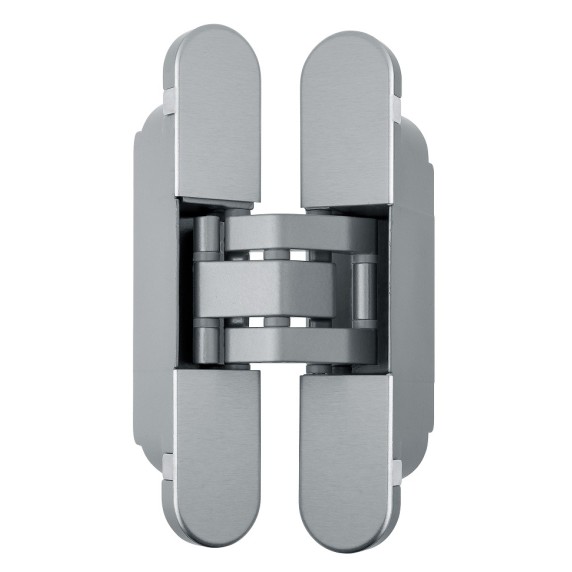

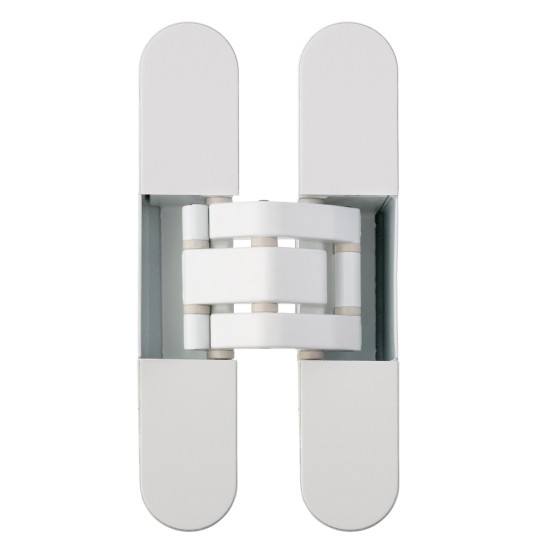

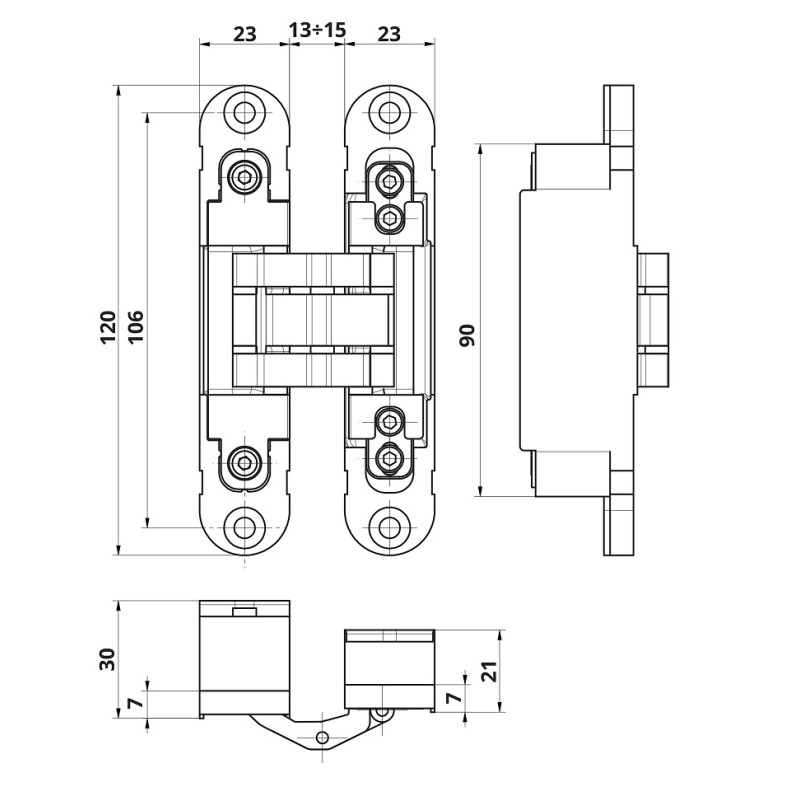

Concealed hinges OTLAV IN230

Concealed hinges OTLAV IN230

Hinges for flat doors without overlap;

The hinges are universal, made of zamako, the set includes protective caps;

The operation of the hinges is based on seven points of rotation;

Maximum load - 60kg (using 2 hinges). Minimum sash width - 40mm.

Suitable for fire doors (30 minutes). Test 200, 000 opening cycles;

Adjustable in three directions (independently of each other): vertically +/- 2mm; horizontally +/- 2mm; depth +/- 1mm.
