FLUID EVOLUTION With 2-Way "Soft Close" up to 80 kg

COMPLETE SLIDING DOOR SYSTEM KIT, YOU MAY ALSO NEED:

• CRAZY SYSTEM
• DEEP FINISHING SYSTEM
• TOP TRIM COVERS SLATS.

ADDITIONAL PRODUCTS CAN BE FOUND AT THE BOTTOM OF THIS PAGE.

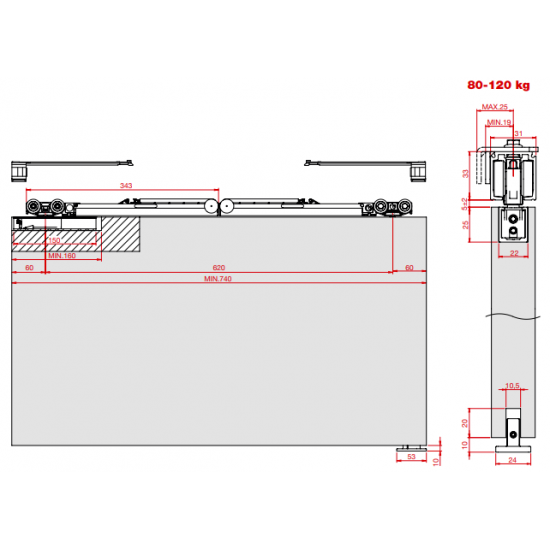

Sliding door system with milled mounting plates. The set includes 2 pcs. Liquid brakes 5 cm long with the "soft closing" function. Maximum leaf weight 80 kg. Minimum leaf width 740 mm. Adjustable leaf extension guide.

Distance between the leaf and the rails: 5 mm +- 2 mm.

The set includes:

• 2 pcs. chassis (wheels);
• 2 pcs. automatic hook "click" on the chassis;
• 2 smooth liquid brakes;
• 2 brake activators;
• 1 adjustable guide by width;
• 1 key for adjusting the height of the leaf;
