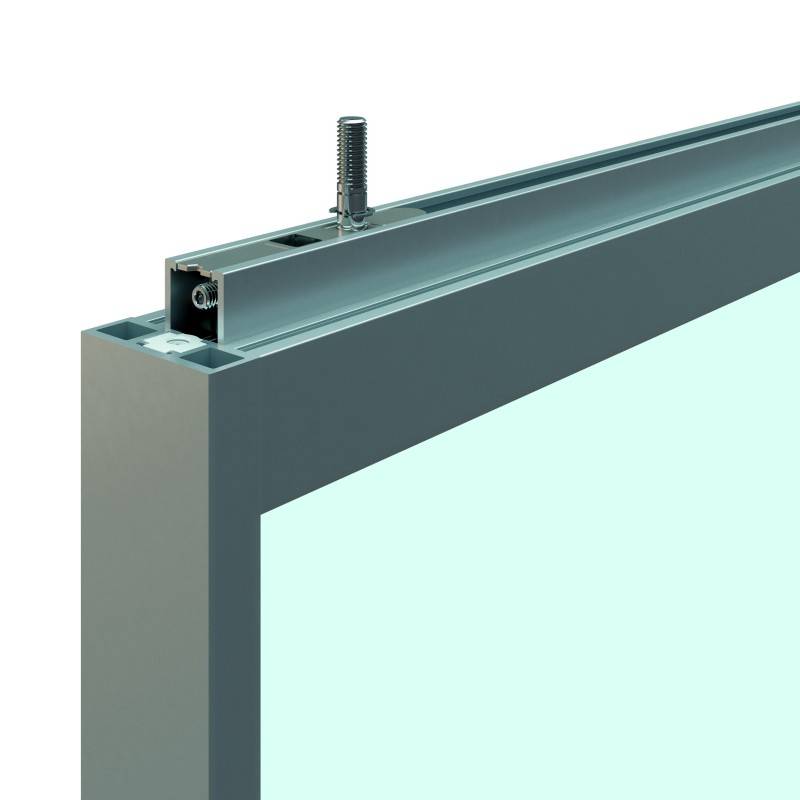

UNIVERSAL - Sliding door system with a set of aluminum profiles for glass or panel.

Glass / plate is not included in the kit price

The product is sold in three sizes: 1000 x 2200 mm, 1200 x 2600 mm and 1500 x 3000 mm.

The frame is assembled using metal connectors, so no additional milling or drilling work is required. Profiles can be cut to the required size.

The UNIVERSAL frame allows you to complete many different configurations from single sliding doors to double sliding doors with additional fixed leaves.

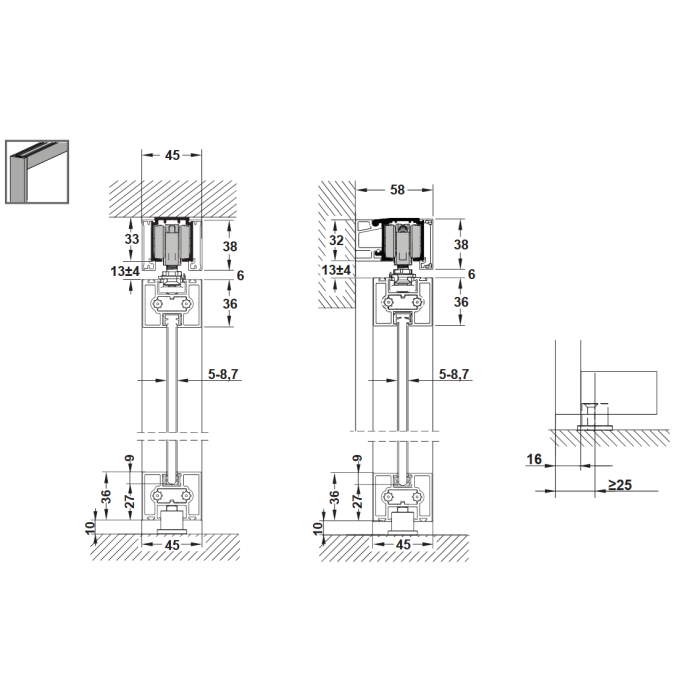

Glass/Slab thickness - 5 mm - 8.5 mm

The maximum weight of the sash is 80 kg

Glass measurements:

Subtract 54 mm from the product height / 14 mm from the width

PVZ: Product height 2200 mm / width 1100 mm

Glass dimensions: 2146 mm high / 1086 mm

The set includes:

• Sliding door system with 2 "Soft Close" soft closing brakes
• Aluminum profiles for glass/plate (GLASS IS NOT INCLUDED IN THE KIT)
• A set of gaskets
