Concealed hinge with pull KOBLENZ KIKER — matt chrome

Installation instructions

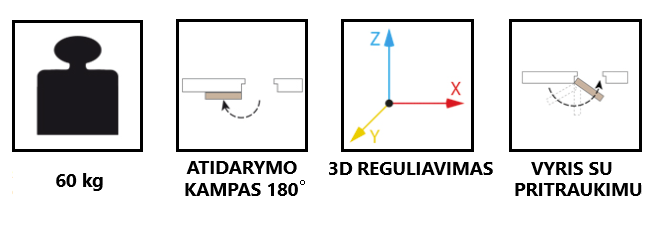

Concealed door hinges KOBLENZ KIKER are designed for doors without a margin. The hinges are milled in the door frame and leaf, so they become invisible when the door is closed. The hinges have 5 axes of rotation, which ensures easy and long service life of the door, and the door can be opened at an angle of 180°. The hinge body is made of pressed steel, the hinge elbows are made of high-quality metal alloy ZAMAK, and high mechanical resistance and self-lubrication are ensured by the polymer POM C inside the hinge. The hinges are universal - suitable for both left and right door opening directions.

3D three-way (independent) adjustment: vertical +/- 2.5 mm; horizontally +3 mm/-1.5 mm; depth +/- 1 mm.

Maximum door weight - 60 kg

Minimum sash thickness - 32 mm

The set includes:

• 1 pc. hinge;
• 4 pcs metal decorative covers;
• 4 pcs. wood screws;
